SPECIFICATIONS
| Type | Corrugation angle | Corrugation normal pitch(mm) | Corrugation depth(mm) | Equivalent diameter (mm) |
Corner hole diameter(mm) | Corner hole center distance (mm) |
Dimensions (mm) |
Flow cross-sectional area(㎡) | Material weight（kg） | ||||||
| 304 0.5/0.6 |
316L 0.5/0.6 |
titanium 0.5/0.6 |
Hassan 0.6 |
254Mo 0.6 |
nickel 0.6 |
Veneer area（㎡） | |||||||||
| /0.8 | |||||||||||||||
| SR3 | no | ||||||||||||||
| FH17 | 60°120° | 11.15 | 3 | 6 | φ74 | 800*150 | 920*271 | 0.000694 | 1.10/1.32 | 1.11/1.33 | 0.64/0.76 | 1.51 | 1.39 | 1.51 | 0.17 |
| FN35 | 60°120° | 9.09 | 2.8 | 5.6 | φ85 | 1069*238 | 1203*317 | 0.000924 | 1.81/2.18 | 1.82/2.19 | 1.04/1.25 | 2.47 | 2.28 | 2.47 | 0.35 |
| A055 | 60°120° | 11.5 | 3.2 | 6.4 | φ150 | 1057*380 | 1217*595 | 0.001712 | 0.55 | ||||||
| A085 | 60°120° | 11.5 | 3.2 | 6.4 | φ150 | 1531*380 | 1745*595 | 0.001712 | 4.7/5 | 0.85 | |||||
| A145 | 60°120° | 3.2 | 6.4 | φ150 | 2479*380 | 2693*595 | 0.001712 | 1.45 | |||||||
| J185 | 60°120° | 10.4 | 3 | 6 | φ229 | 2415*465 | 2692*746 | 0.002085 | 8.33/10 | 8.38/10.1 | 4.74/5.69 | 11.3 | 10.39 | 11.3 | 1.85 |
| J107 | 60°120° | 10.4 | 3 | 6 | φ229 | 1477.5*465 | 1755*746 | 0.002085 | 5.24/6.27 | 5.27/6.31 | 2.98/3.57 | 7.1 | 6.51 | 7.1 | 1.07 |
| J092 | 60°120° | 10.4 | 3 | 6 | φ229 | 1290*465 | 1567*746 | 0.002085 | 4.68/5.64 | 4.71/5.67 | 2.67/3.21 | 6.32 | 5.86 | 6.32 | 0.92 |

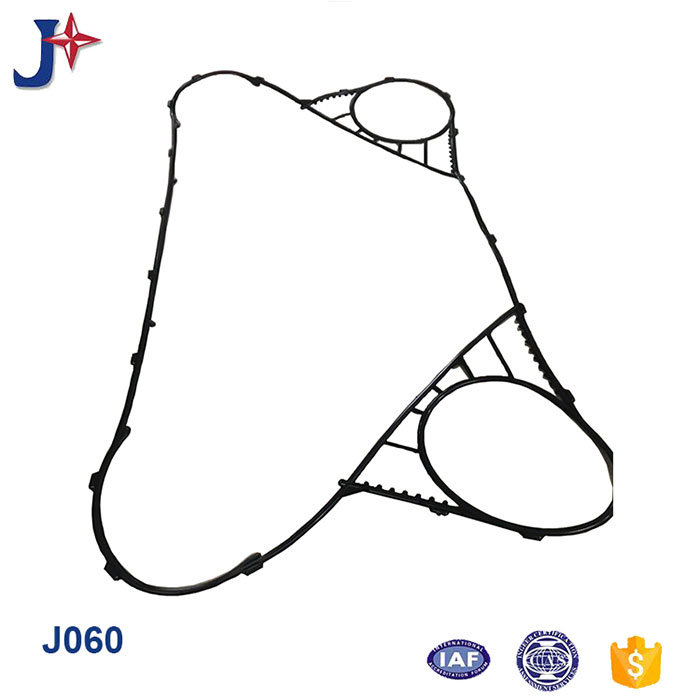

| J060 | 60°120° | 10.4 | 3 | 6 | φ229 | 915*465 | 1192*746 | 0.002085 | 3.57/4.29 | 3.60/4.31 | 2.03/2.44 | 4.81 | 4.45 | 4.81 | 0.6 |
| Q080 | 60°120° | 10 | 3 | 6 | φ118 | 1757*310 | 1944*496 | 0.001323 | 0.8 | ||||||
| Q055 | 60°120° | 10 | 3 | 6 | φ118 | 1217*310 | 1394*496 | 0.001323 | 2.8/3.5 | /2 | 0.55 | ||||
| Q030 | 60°120° | 10 | 3 | 6 | φ118 | 722*310 | 899*496 | 0.001323 | 1.6/ | 0.3 | |||||
| N50 | Jinfan only has large angles, not small angles | 162Ox373 | 3.0/3.5 | ||||||||||||
| N25 | Jinfan only has large angles, not small angles | 1.39/ | |||||||||||||
| T4 | 0.25/ | 0.15/ | |||||||||||||
| M92 | 1290*465 | /3.2 | |||||||||||||
| TL500SS | SH Indicates deep groove and large angle | ||||||||||||||
| TL500PP | PH Indicates shallow groove large angle | ||||||||||||||
| N40 | only one angle | 4.1kg | |||||||||||||
| B063S it’s B063 | APV Will use L and S to distinguish semi-welded and detachable. L means semi-welded and S means detachable. | ||||||||||||||
| B110 | Jinfan is available in both large and small angles | 1523*486 | 1894*854 | /6.1 | |||||||||||
| B205 | 2205*854 | ||||||||||||||
| M107 | only small angle | 3/ | |||||||||||||
| H12 | 0.8/ | ||||||||||||||
| TR9GN | 1727*670 | /5.5 | |||||||||||||
| B110S | 1902×862 | ||||||||||||||
| N35 | The caliber of the whole machine is DN100 | 2.2/2.5 | |||||||||||||
| APV’s A145 is the A085 lengthened | |||||||||||||||
PRODUCT DISPLAY
By keeping most often used plates in stock at all times, we have the ability to offer immediateshipment on most requests.Our turnaround time and price is unmatched in the industry.We guarantee every plate sold with equal or longer warranty periods compared to the originalmanufacturer.The models we provide can replace the world famous manufacturers.
PRODUCT DETAILS
1./ DIVERSE PLATE MODELS /We have almost 150 models for detachable plate heat exchanger. The plate angle is distinguishedbetween high theta and low theta, chevron is divided into shallow groove.deep groove and super-deep groove which can be assembled to narrow passage PHE, wide passage PHE and super-widepassage PHE in order to be applied in different fields and fluids.
2./ UNIQUE PLATE DESIGN /We design efficient heat transfer plate based on super tinny digital precise measuring and testmethod.The unique chevrons of plates along with reasonable plate mould design improve heattransferefficiency.
3./MIX DESIGN/Success plates with H theta and L theta which can achieve the thermal mix design.Higher heat transfer performance and pressure drop.Lower heat transfer performance and pressure drop.
EXHIBITION & CUSTOMER
CERTIFICATES
Why Choose Us
FAQ
1.Can l have your samples?
Yes, we can provide samples for you to check our quality.
2. What is your leading time for the products l need?
enerally 7 working days. lt depends on the quantities you request.
3.Do you have your own factory?
Yes, welcome to visit our factory and check our products.
4. What is the warranty for your products?
We provide one year warranty for all the items we sold.
5.What payment terms do you accept?
Trade Assurance/TT/ Letter of Credit/ Western Union
