規格
| 類型 | 波紋角 | 波紋法向節距(毫米) | 波紋深度(毫米) | 當量直徑 (毫米) |
角孔直徑(毫米) | 角孔中心距 (毫米) |
方面 (毫米) |
流通截面積(平方米) | 物料重量（kg） | ||||||
| 304 0.5/0.6 |
316L 0.5/0.6 |
鈦 0.5/0.6 |
哈桑 0.6 |
254莫 0.6 |
鎳 0.6 |
單板面積（㎡） | |||||||||
| /0.8 | |||||||||||||||
| SR3 | 不 | ||||||||||||||
| FH17 | 60°120° | 11.15 | 3 | 6 | φ74 | 800*150 | 920*271 | 0.000694 | 1.10/1.32 | 1.11/1.33 | 0.64/0.76 | 1.51 | 1.39 | 1.51 | 0.17 |
| FN35 | 60°120° | 9.09 | 2.8 | 5.6 | φ85 | 1069*238 | 1203*317 | 0.000924 | 1.81/2.18 | 1.82/2.19 | 1.04/1.25 | 2.47 | 2.28 | 2.47 | 0.35 |
| A055 | 60°120° | 11.5 | 3.2 | 6.4 | f150 | 1057*380 | 1217*595 | 0.001712 | 0.55 | ||||||
| A085 | 60°120° | 11.5 | 3.2 | 6.4 | f150 | 1531*380 | 1745*595 | 0.001712 | 4.7/5 | 0.85 | |||||
| A145 | 60°120° | 3.2 | 6.4 | f150 | 2479*380 | 2693*595 | 0.001712 | 1.45 | |||||||
| J185 | 60°120° | 10.4 | 3 | 6 | φ229 | 2415*465 | 2692*746 | 0.002085 | 8.33/10 | 8.38/10.1 | 4.74/5.69 | 11.3 | 10.39 | 11.3 | 1.85 |
| J107 | 60°120° | 10.4 | 3 | 6 | φ229 | 1477.5*465 | 1755*746 | 0.002085 | 5.24/6.27 | 5.27/6.31 | 2.98/3.57 | 7.1 | 6.51 | 7.1 | 1.07 |
| J092 | 60°120° | 10.4 | 3 | 6 | φ229 | 1290*465 | 1567*746 | 0.002085 | 4.68/5.64 | 4.71/5.67 | 2.67/3.21 | 6.32 | 5.86 | 6.32 | 0.92 |
| J060 | 60°120° | 10.4 | 3 | 6 | φ229 | 915*465 | 1192*746 | 0.002085 | 3.57/4.29 | 3.60/4.31 | 2.03/2.44 | 4.81 | 4.45 | 4.81 | 0.6 |
| Q080 | 60°120° | 10 | 3 | 6 | φ118 | 1757*310 | 1944*496 | 0.001323 | 0.8 | ||||||
| Q055 | 60°120° | 10 | 3 | 6 | φ118 | 1217*310 | 1394*496 | 0.001323 | 2.8/3.5 | /2 | 0.55 | ||||
| Q030 | 60°120° | 10 | 3 | 6 | φ118 | 722*310 | 899*496 | 0.001323 | 1.6/ | 0.3 | |||||
| N50 | Jinfan only has large angles, not small angles | 162Ox373 | 3.0/3.5 | ||||||||||||
| N25 | Jinfan only has large angles, not small angles | 1.39/ | |||||||||||||
| T4 | 0.25/ | 0.15/ | |||||||||||||
| M92 | 1290*465 | /3.2 | |||||||||||||
| TL500SS | SH Indicates deep groove and large angle | ||||||||||||||
| TL500PP | PH Indicates shallow groove large angle | ||||||||||||||
| N40 | 只有一個角度 | 4.1公斤 | |||||||||||||
| B063S it’s B063 | APV Will use L and S to distinguish semi-welded and detachable. L means semi-welded and S means detachable. | ||||||||||||||
| B110 | Jinfan is available in both large and small angles | 1523*486 | 1894*854 | /6.1 | |||||||||||
| B205 | 2205*854 | ||||||||||||||
| M107 | only small angle | 3/ | |||||||||||||
| H12 | 0.8/ | ||||||||||||||
| TR9GN | 1727*670 | /5.5 | |||||||||||||
| B110S | 1902×862 | ||||||||||||||

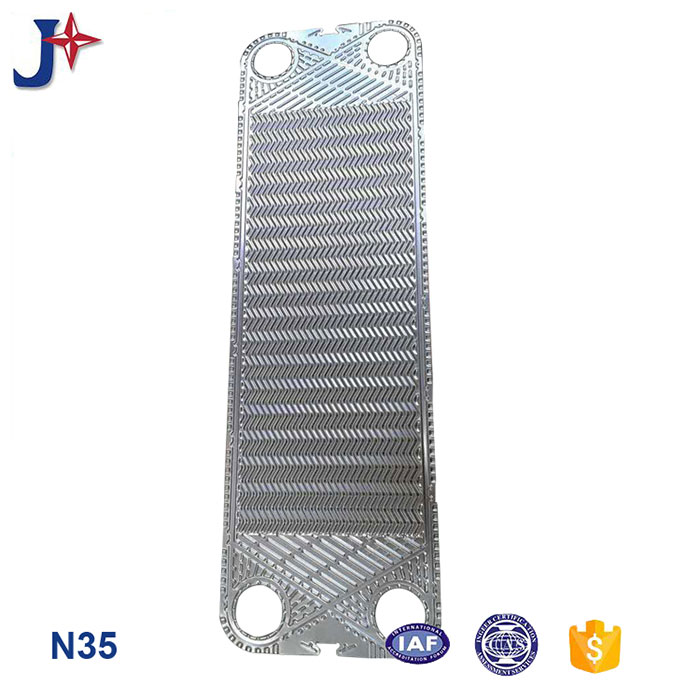

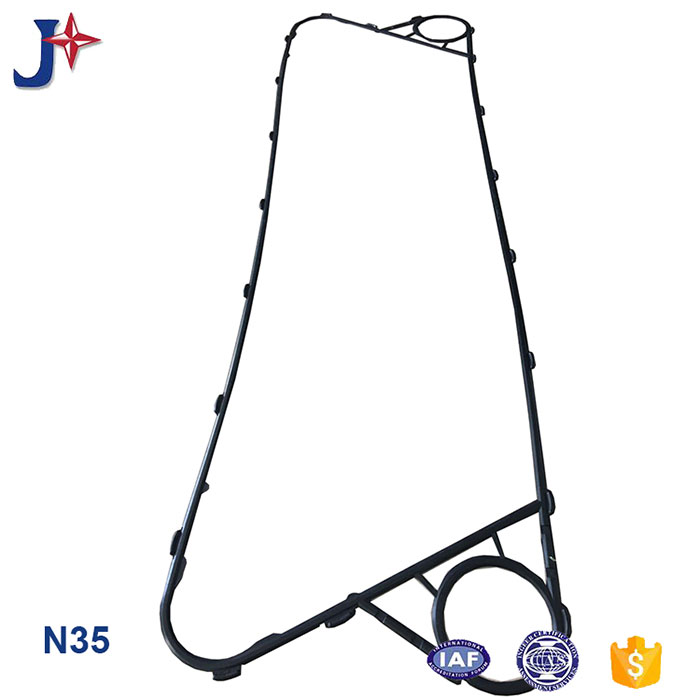

| N35 | The caliber of the whole machine is DN100 | 2.2/2.5 | |||||||||||||
| APV’s A145 is the A085 lengthened | |||||||||||||||
產品展示
始終保留最常用的印版庫存, we have the ability to offer immediateshipment on most requests.Our turnaround time and price is unmatched in the industry.We guarantee every plate sold with equal or longer warranty periods compared to the originalmanufacturer.The models we provide can replace the world famous manufacturers.產品詳情
1./ 板型多樣 /我們幾乎有 150 可拆卸板式熱交換器型號. 板角有高θ和低θ之分, 人字形分為淺槽、深槽和超深槽，可組裝成窄通道板式熱交換器, 寬通道板式熱交換器和超寬通道板式熱交換器，以適應不同領域和流體.
2./ 獨特的板設計 /我們基於超微小數位精密測量和測試方法設計高效傳熱板片。獨特的板片形狀加上合理的板片模具設計提高了傳熱效率.
3./混合設計/Success plates with H theta and L theta which can achieve the thermal mix design.Higher heat transfer performance and pressure drop.Lower heat transfer performance and pressure drop.
相關產品
包裝&送貨
1./ 板型多樣 /我們幾乎有 150 可拆卸板式熱交換器型號. 板角有高θ和低θ之分, 人字形分為淺槽、深槽和超深槽，可組裝成窄通道板式熱交換器, 寬通道板式熱交換器和超寬通道板式熱交換器，以適應不同領域和流體.
2./ 獨特的板設計 /我們基於超微小數位精密測量和測試方法設計高效傳熱板片。獨特的板片形狀加上合理的板片模具設計提高了傳熱效率.
3./混合設計/Success plates with H theta and L theta which can achieve the thermal mix design.Higher heat transfer performance and pressure drop.Lower heat transfer performance and pressure drop.
展覽 & 顧客
證書
為什麼選擇我們
常問問題
1.我可以要你的樣品嗎?
是的, 我們可以提供樣品供您檢查我們的質量.
2. 我需要的產品的交貨時間是多少?
一般來說 7 工作日. 這取決於您要求的數量.
3.你有自己的工廠嗎?
是的, 歡迎來本廠參觀並檢查我們的產品.
4. 你們的產品有什麼保固期?
我們為所有出售的商品提供一年保固.
5.你們接受什麼付款條件?
貿易保證/TT/信用狀/西聯匯款
